UL認證電纜

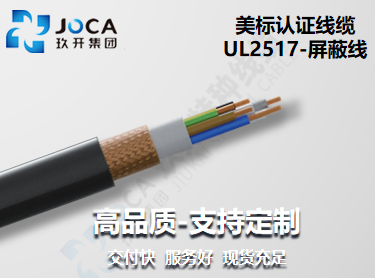

UL2517屏蔽線

  • 產品簡介： UL2517屏蔽線，105℃耐溫、300V耐壓，PVC絕緣護套，鍍錫銅絲編織屏蔽，適用于電子設備信號傳輸
  • 配套服務：
    支持定制 物流配送 免費安裝 現場培訓 后期維護
  • 相關產品：

產品介紹

UL2517 - 屏蔽線是抗干擾型設備內部專用布線，采用 30~2AWG 單根 / 絞合裸銅 / 鍍錫銅導體，搭配 105℃耐熱 PVC 混合物絕緣與護套，額定電壓 300V，用于電腦、電器、電子設備及儀器、儀表等內部配線可作為測量、檢測和控制電纜結合在機床制造、成套設備安裝、電站、暖氣和空調系統、冷凍設備、辦公自動設備及數據處理系統等場合

應用標準:UL758，UL1581



電纜結構

1. 導體:使用30~2AWG單根或絞合裸銅絲或鍍錫銅絲

2. 絕緣:105℃耐熱PVC混合物

3. 芯線顏色:任意色

4. 屏蔽:鋁塑復合帶(可選)+鍍錫銅絲

5. 護套:105℃耐熱PVC混合物

6. 護套顏色:任意顏色

技術參數：

1. 額定電壓:300V

2. 測試電壓:2000V

3. 溫度范圍;固定:-20℃~105℃

4. 移動:-5℃~105℃

5. 彎曲半徑:固定:4D;移動:8D

6. 燃燒測試;通過UL VW-1及CSA FT1垂直燃燒測試


型號規格近似外徑 (mm)電纜近似重量 (kg/km)
UL25172×26AWG4.629.9
UL25173×26AWG4.832.8
UL25174×26AWG5.136.6
UL25175×26AWG5.542.9
UL25176×26AWG5.948.4
UL25177×26AWG5.949.9
UL25178×26AWG6.255.8
UL25179×26AWG6.763
UL251710×26AWG7.186.9
UL251711×26AWG7.370.6
UL251712×26AWG7.373.5
UL251713×26AWG7.678.5
UL251714×26AWG7.681.4
UL251715×26AWG887.8
UL251716×26AWG890.7
UL251717×26AWG8.496.2
UL251718×26AWG8.499.2
UL251719×26AWG8.4100.7
UL25172×24AWG4.933.9
UL25173×24AWG5.138.1
UL25174×24AWG5.544.4
UL25175×24AWG5.850
UL25176×24AWG6.357.1
UL25177×24AWG6.359.2
UL25178×24AWG6.766.9
UL25179×24AWG7.274.8
UL251710×24AWG7.681.9
UL251711×24AWG7.884.7
UL251712×24AWG7.888.6
UL251713×24AWG8.294.8
UL251714×24AWG8.298.7
UL251715×24AWG8.6106.2
UL251716×24AWG8.6110.2
UL251717×24AWG9.4128.4
UL251718×24AWG9.4130.3
UL251719×24AWG9.4132.4
UL25172×22AWG5.239.3
UL25173×22AWG5.444.3
UL25174×22AWG5.853.3
UL25175×22AWG6.259.8
UL25176×22AWG6.768.6
UL25177×22AWG6.771.8
UL25178×22AWG7.281.4
UL25179×22AWG7.891.2
UL251710×22AWG8.2108.6
UL251711×22AWG8.5104
UL251712×22AWG8.5109.3
UL251713×22AWG9.3126.2
UL251714×22AWG9.3131.5
UL251715×22AWG9.7141.4
UL251716×22AWG9.7146.7
UL251717×22AWG10.1156
UL251718×22AWG10.1161.4
UL251719×22AWG10.1164.5
UL25172×20AWG5.545.6
UL25173×20AWG5.854.6
UL25174×20AWG6.364.1
UL25175×20AWG6.772.9
UL25176×20AWG7.284.2
UL25177×20AWG7.289.3
UL25178×20AWG7.8101.7
UL25179×20AWG8.4113.6
UL251710×20AWG9.3134.2
UL251711×20AWG9.6139.8
UL251712×20AWG9.6147.1
UL251713×20AWG10157.7
UL251714×20AWG10165
UL251715×20AWG10.7182.6
UL251716×20AWG10.7190
UL251717×20AWG11.2201.9
UL251718×20AWG11.2209.3
UL251719×20AWG11.2214.5
UL25172×18AWG655.5
UL25173×18AWG6.367.2
UL25174×18AWG6.880.4
UL25175×18AWG7.493.6
UL25176×18AWG7.9108.8
UL25177×18AWG7.9116.2
UL25178×18AWG8.5132.6
UL25179×18AWG9.7158.2
UL251710×18AWG10.5179.8
UL251711×18AWG10.8198.2
UL251712×18AWG10.8218.7
UL251713×18AWG11.3213.2
UL251714×18AWG11.3228.8
UL251715×18AWG12244.8
UL251716×18AWG12257.4
UL251717×18AWG12.6272.8
UL251718×18AWG12.6283.4
UL251719×18AWG12.6291.8
UL25172×16AWG6.670.4
UL25173×16AWG787.9
UL25174×16AWG7.6106
UL25175×16AWG8.2125.2
UL25176×16AWG9.3154.8
UL25177×16AWG9.3167.7
UL25178×16AWG10190.8
UL25179×16AWG11.1219.8
UL251710×16AWG11.9248
UL251711×16AWG12.3264.8
UL251712×16AWG12.3277.6
UL251713×16AWG12.9301.2
UL251714×16AWG12.9314.1
UL251715×16AWG13.7344.4
UL251716×16AWG13.7360.3
UL251717×16AWG14.4382.5
UL251718×16AWG14.4398.3
UL251719×16AWG14.4411.2
